This advanced BMS tester supports 1–32 series lithium battery packs with 300A charging and 600A discharging. It performs fast and precise testing of BMS functions, including overcharge, overdischarge, overcurrent, short-circuit, and balancing. Ideal for high-power battery applications in EVs, energy storage systems, and industrial battery modules.
وسم :
ACEYالتخصيص :
OEM&ODM Availableالنظام (موك) :
1 Setامتثال :
CE Certifiedدفع :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, Etcالضمان :
One Year Warranty With Lifetime Supportأصل المنتج :
Chinaحزمة :
Internal: Anti-Collision Protectio, External: Plywood Caseالشحن :

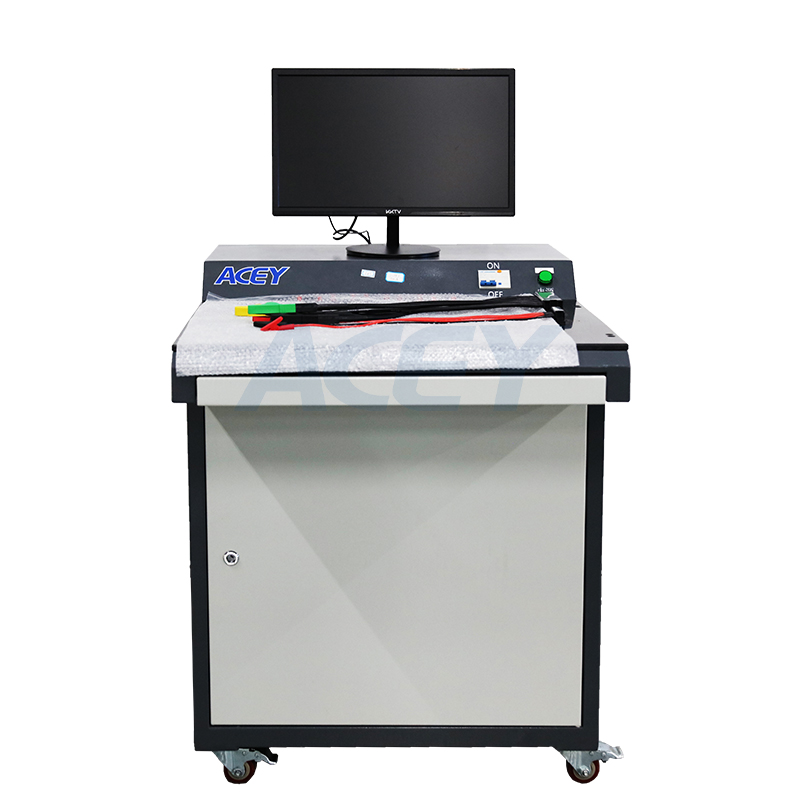

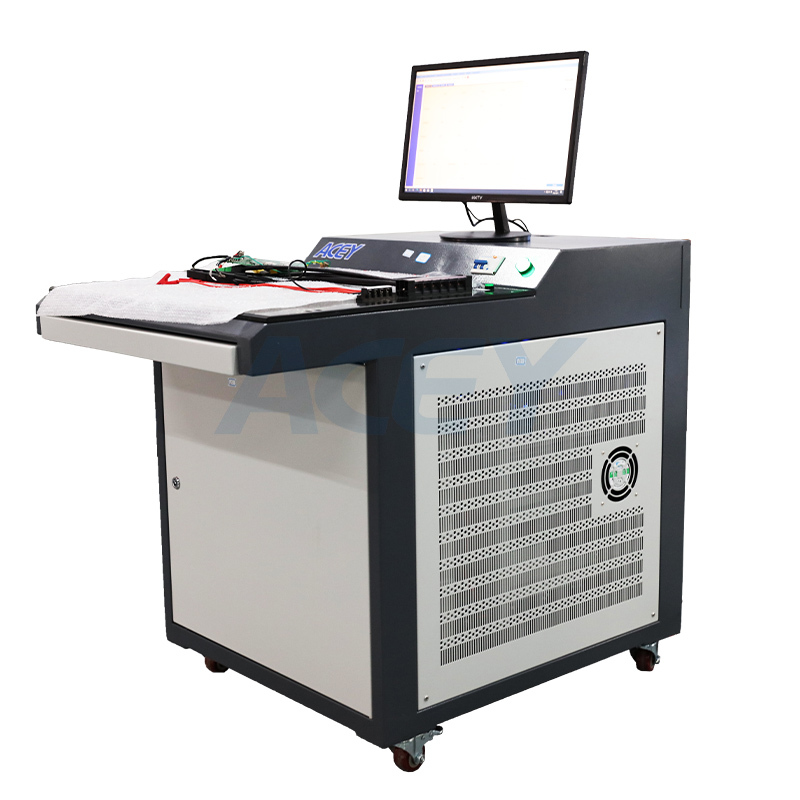

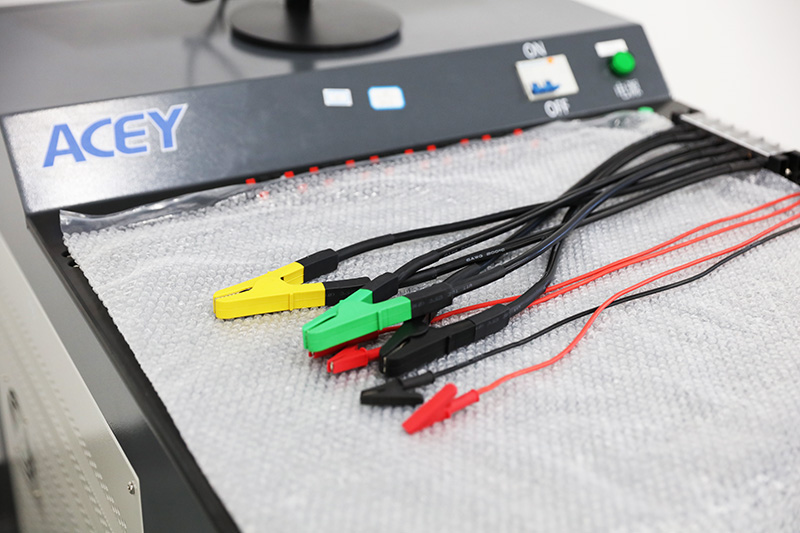

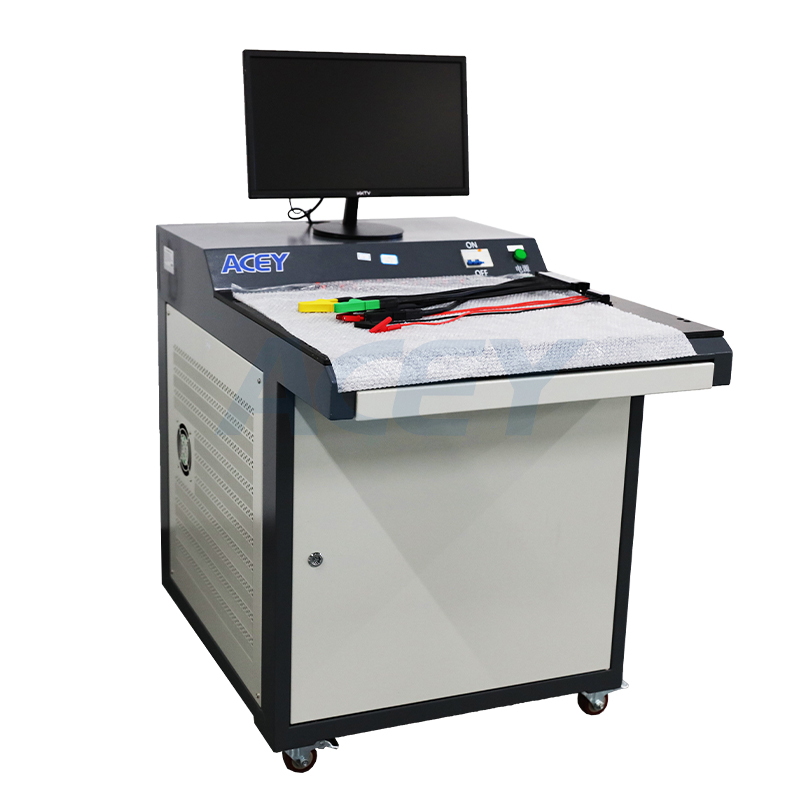

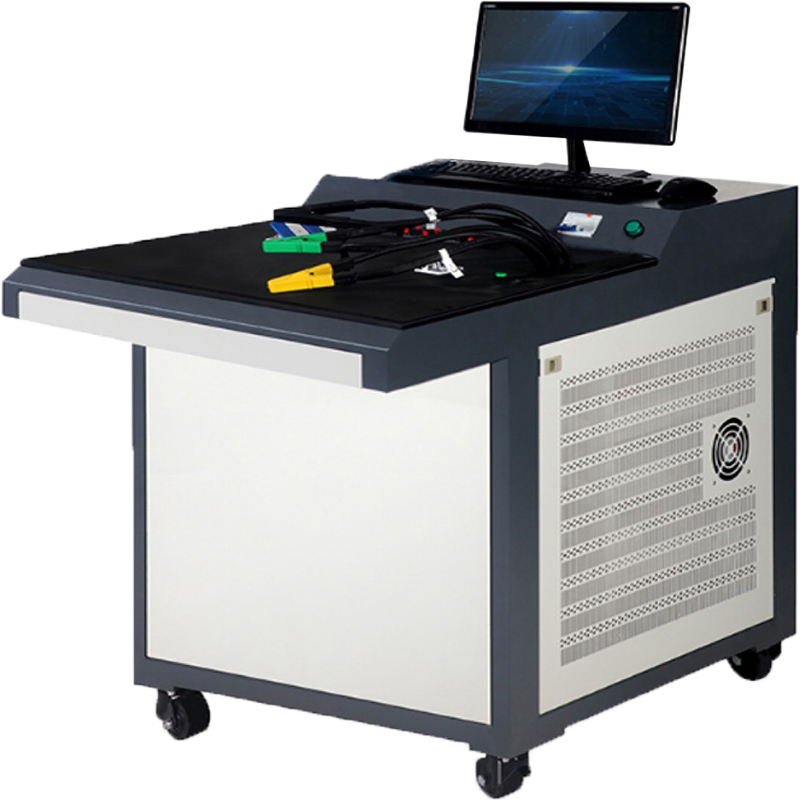

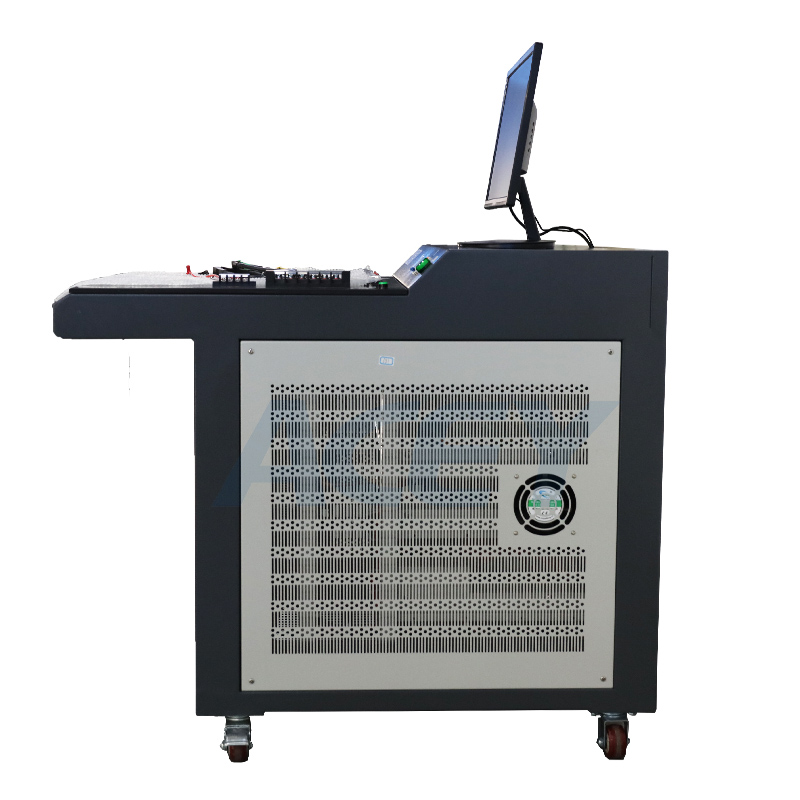

By Air, Sea, Express, etc.1-32S BMS Tester 300A charge 600A discharge
（Picture for reference only）
Remark：Unique function of hardware and softwae
|
1 |
Short circuit protection test：the protction can reach the microsecond |
|
2 |
Disconnective test：Any series fall off or disconnect will be discovered |
|
3 |
self-consumption test：the accurate self-consumption of each section |
|
4 |
Balance current and balance voltage |
Function introduce
1) 1-32 series battery management system tester, high degree of automation, fast testing speed and high testing accuracy. With test function of overcharge protection, overcharge recovery, overdischarge protection, overdischarge recovery, overcurrent protection (overcharge current and overdischarge current), internal resistance, self-consumption, short circuit protection, overcharge protection time, overcurrent protection time, overdischarge protection Time, balance current, balance voltage etc.
2) It can test the BMS of MCN battery, LiFeO4 battery and cobalt acid battery.
3) This machine is required to be connected to a computer, th system generally requires an XP system, the interface of tester and computer is RS232.
Technical parameter
(1) Input power supply: 180~240V 50/60HZ，Power: 700W
(2) Power standard supply: AC 220V/50HZ，Range:±10%
(3) The voltage of chare and discharge：5000mV ~160000mV
(4) It can test and set the voltage range when this machine is charging and dischagring..
(5) Current accuracy：：±(0.1%FS+0.1%RD)
(6) Voltage accuracy±(0.1%FS+0.1%RD)
(7) Current resolution：1mA (smallest unit)
(8) Voltage resolution：1mV (smallest unit)
(9) Cycles：1～9999
(10) With log function, including operation records and exception records during the whole process of testing, which can be used for traceability of the testing process.
(11) Data processing, human-machine interface
(12) Export data formation:Excel
(13) Interface:RS232
(14) Accuracy calibration/software calibration
(15) With scan code start function
(16) MES system connection
Tester Function
|
No. |
Function |
Range |
Accuracy |
unit |
|
1 |
Self-consumption of single cell |
0--500 |
±0.1 |
uA |
|
2 |
Self-consumption |
0--5000 |
±1 |
uA |
|
3 |
Overcharge voltage |
500--5000 |
±1 |
mV |
|
4 |
Overcharge recovery voltage |
500--5000 |
±1 |
mV |
|
5 |
Overcharge voltage protection delay |
0--10000 |
±1 |
mS |
|
6 |
Overdischarge voltage |
500--5000 |
±1 |
mV |
|
7 |
Overdischarge recovery voltage |
500--5000 |
±1 |
mV |
|
8 |
Overdischarge voltage protection delay |
0--10000 |
±1 |
mS |
|
9 |
Overcharge protection current protection value |
0.1--300 |
±0.01 |
A |
|
10 |
Overcharge protection current protection delay |
0--20000 |
±1 |
mS |
|
11 |
Overdischarge protection current protection value |
0.1--600 |
±0.01 |
A |
|
12 |
Overdischarge protection current protection delay |
0.1--20000 |
±1 |
mS |
|
13 |
Equalization function opening voltage |
500--5000 |
±1 |
mV |
|
14 |
Equalizing current |
1--500 |
±1 |
mA |
|
15 |
Charging current |
0.1--300 |
±0.01 |
A |
|
16 |
Discharging current |
0.1--600 |
±0.01 |
A |
|
17 |
Charging time |
0--100 |
±1 |
S |
|
18 |
Discharging time |
0--100 |
±1 |
S |
|
19 |
The difference of single cell self-consume |
0-500 |
±0.1 |
uA |
|
20 |
Resistance |
0-999 |
±1 |
mΏ |
|
21 |
Short circuit protection time |
0--5000 |
±1 |
uS |
|
22 |
short circuit current |
1000 |
N |
A |
|
23 |
The charging voltage of single cell |
500--5000 |
±1 |
mV |
|
24 |
The discharging voltage of single cell |
500--5000 |
±1 |
mV |
|
25 |
Open circuit voltage |
160000 |
±1 |
mV |
|
26 |
Number of voltage analogs |
32 |
0 |
PCS |
Communication Test
Communication Port: RS485，CAN2.0，UART,SNMP，232
Interface:
Parameter of the main loop test
|
Project |
Parameter |
|
Voltage |
160000mV |
|
Voltage resolution |
1mV |
|
Vlotage accuracy |
±0.1% |
|
Discharging current |
0.1A ~600A |
|
Current resolution |
1mA |
|
Current accuracy |
±（0.1%） |
|
Other |
The charging and discharging circuits are completely separated |
Parameter of every serise cell
|
Project |
Parameter |
|
Output voltage of every cell |
500mV ~ 5000mV |
|
Intput voltage of every cell |
500mV ~ 5000mV |
|
Voltage resolution |
1mV |
|
Vlotage accuracy |
±0.05% |
|
Equalization current |
500mA |
Parameter of power Box(Overcurrenr)
|
Project |
Parameter |
|
Controlled Analog Current Range |
0.1A -600A |
|
Controlled Analog Current accuracy |
±0.1% |
|
Max output voltage |
5000mV |
Other parameter
|
Project |
Parameter |
|
Consumption current measuring range |
1 ~ 5000uA |
|
Consumption current measuring resolution |
0.1uA |
|
Resistance |
ACIR：0-999mr |
|
Protection time |
Overcurrent protection time:0-999ms; Short circuit protection time：0-999us |
|
1 channel signal voltage output: |
500~5000mV |
|
AD/DA |
AD：16bit DA:16bit |
|
Discharging model |
CC |
|
24 analog cells |
Input/output:500~5000mV, voltage accuarcy:±0.1% |
|
Communication rate |
2channels SBS communication rate:10~100Kbps |
|
Others |
Voltage sample:0~5000mV accuarcy:±0.1% |
|
Protect function |
Overall protection (including reverse connection protection, voltage lower protection, voltage upper protection, and current upper protection), CC charging protection (abnormal voltage trend protection, abnormal charging current fluctuation protection, abnormal voltage fluctuation protection), CC discharge protection (including Voltage trend abnormal protection, discharge current fluctuation abnormal protection, voltage fluctuation abnormal protection) |
|
Communication |
Interface RS232/DB9 Communication rate interface:38400 All communication ports of the equipment are isolated, with lightning protection design |
|
circuit structure |
Modular structure, can be replaced and repaired in time with spare parts and spare parts. |
|
Machine architecture |
Split cabinet |
|
Safety level |
EN60950，GB4943 |
|
noise |
As per IEC62040-3, ≤70dBA |
|
Degree of protection |
IP20 |
|
Color |
Subject to actual conditions |
|
lightning protection |
GB17626 level:II |
|
Cooling |
Forced air cooling, at least 20cm space between exit and entry |
|
Start pulse voltage |
Equipment testing, the maximum allowable pulse voltage at the time of starting the execution process ≤ (set the number of test strings * set the single voltage)*110%, T≤500uS；
|
|
Start pulse current |
For equipment testing, the maximum allowable pulse current at the time of starting the overcurrent test process is less than or equal to the upper limit of the set overcurrent protection value*120%, T≤1mS |
|
Wiring method |
Spring crimping |
|
Consumption current measuring range |
2channels SBS communication rate:10~100Kbps |
